TP/SC4

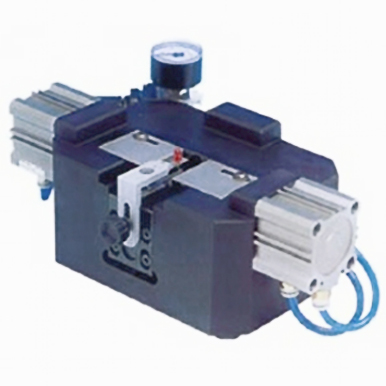

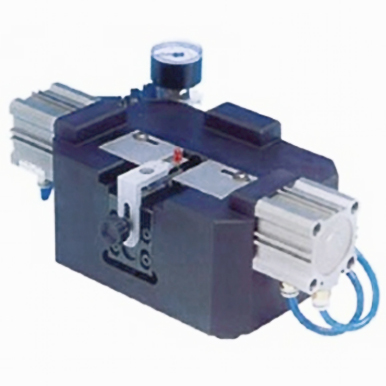

​The TP/SC4 is a pneumatic machine for loose radial components.  There are over 20 standard interchangeable dies available.

The pneumatic machines TP/TS1 and TP/SC4 are very flexible equipment designed for cutting and forming loose radial components. A large number of dies are designed and manufactured to realise the mainly requested standard forms and special ones. They can be adapted to both machine apart one (163000) which needs the activation of a third cylinder that can only be with TP/SC4. It is possible to equip both machines, on request, with two wire holders in order to lock the leads between the body and the operation area

Special dies can be made to modify the specs of a standard form, or a new form can be developed from a drawing upon request.

LEAD DIA.0,3 - 0,8mm
PRODUCTION2.000 p/h
WIDTH24 cm
HEIGHT11 cm
PACKING39x25x27 cm
VOLUME0,034 m3
MACHINE WEIGHT8 kg
GROSS WEIGHT10 kg
