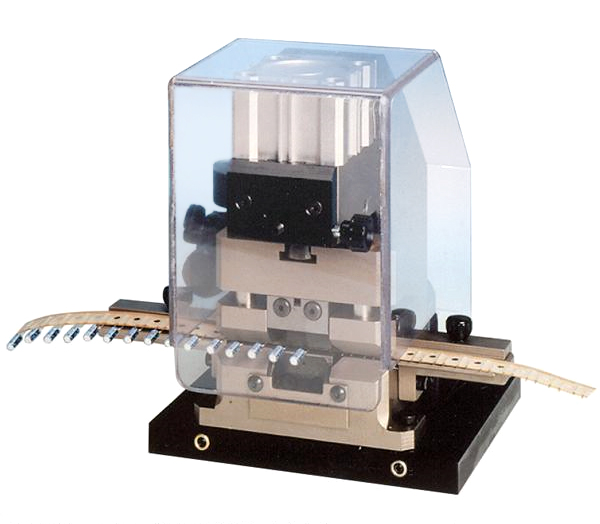

TP/R-PR

Manual pneumatic machine to cut & form radial taped components

The model TP/R-PR is a pneumatic machine with foot pedal control designed for cutting and forming taped radial components. The tape is manually fed into the die and position is easily adjusted. The die assembly “SMS” is equipped with a wire holder to keep the leads firm in position during the machine operation avoiding any stress or damage to the part. Changing the “SMS” is very quick and easy.

The AS1 is a feeding system designed for the TP/R-PR machine. It allows to reach higher production. It can be supplied to adapt to the two most common component tape hole pitches: 12,7 mm(.5”) code 95.OL11 for 110 v and 95.OL12 for 220 v or 15 mm (.59”) code 95.OL13 for 110 v and 95.OL14 for 220 v.

PRODUCTION ON TP/R-PR7000 p/h
ELECT.SUPPLY220 or 110V - 50 Hz - 100 VA
LENGTH50 cm
WIDTH60 cm
HEIGHT18 cm
PACKING60x60x30 cm
VOLUME0,108 m3
NET WEIGHT15 kg
GROSS WEIGHT18 kg
