TP/LN 500

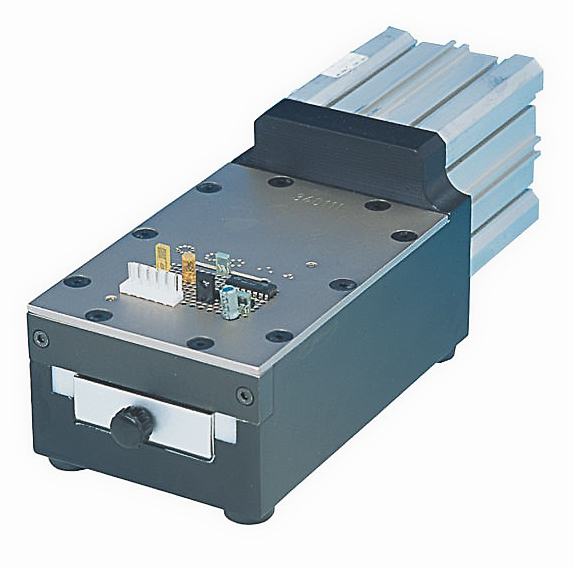

The TP/LN-500 is a pneumatic machine to cut loose radial components by using a guillotine type lower blade. It can handle any type of radial component regardless of lead diameter, pitch and form.

The pneumatic machine TP/LN-500/1 and /2 cuts the leads of any kind of radial
components regardless of the diameter, material, pitch and form because it uses a cobalt “guillotine” blade. The upper plate which determines the cutting height (standard 3,2mm.125”) has always to be ordered separately by the machine because most of the times they have to be designed in special way to be adapted to the component requested height, forms and pitches. Additional plates to increase height can be supplied upon request.

Parameters and specifications

LEAD DIA.0,3 - 1,3 mm
PRODUCTION3.000 p/h
LENGTH25 cm
WIDTH10 cm
HEIGHT10 cm
PACKING39x25x26 cm
VOLUME0,025 m3
MACHINE WEIGHT5 kg
GROSS WEIGHT6 kg
