TP/LN-100

The TP/LN-500 is a pneumatic machine to cut loose radial components.  The upper stationary plate determines de cutting height, the standard is 3.2mm

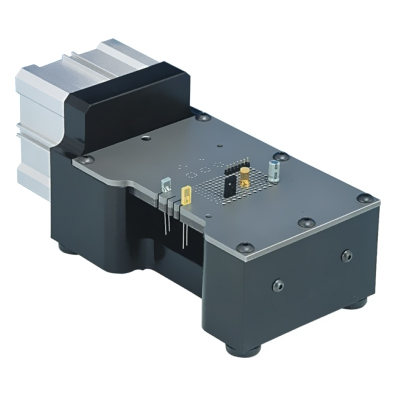

The pneumatic machine TP/LN-100 is used for cutting the leads of loose radial components. It was designed to adapt to a very wide range of radial parts. The upper stationary plate determines the cutting height; the standard is = 3,2 mm. Additional plates to increase this height can be supplied upon request, starting from 0,5 mm.

The pneumatic foot pedal controls the stroke of the lower plate, which performs a quick cut of the leads, without any stress to the components. The plates have a standard grid patern, to accomodate most types of components. Plates with special grid patern can be provided upon request.  Lateral cuts at most common pitches allow toeasily handle warped leads.

LEAD DIA.0,3 - 1 mm
PRODUCTION3.000 p/h
LENGTH21 cm
WIDTH10 cm
HEIGHT10 cm
PACKING39x25x26 cm
VOLUME0,025 m3
MACHINE WEIGHT3 kg
GROSS WEIGHT5 kg
