M3 software

M3 Metlogix video inspection software is a powerful metrology solution that is intuitive to use with a host of advanced tools to simplify measurement and reporting tasks.

Effortless software navigation
The software is designed to help operators navigate the software effortlessly. With a logical layout, operators can quickly become familiar with the M3 software, saving time during measurement routines and reducing the need for long training sessions.

Designed for Multi-Touch control
In addition to conventional mouse interface, the expanded Multi-Touch logic allows for measurement with versatile pan and zoom and active part view with a pinch, swipe or press gestures.

Edge detection
The M3’s manual teach function allows you to instantly capture video edges with poor contrast or difficult viewing by using a variety of image and lighting conditions.

Advanced video probe toolbox
With a single click or press the ‘Touch2Measure’ probe’s intelligent design creates an instant feature determination and measurement. Simple individual points on a components edge can be produced with video touch probe functionality.
  • Simple yet powerful feature measurement for manual or automated CNC stages
  • Multi-touch screen operation with gesture menu or mouse operation
  • No multiple menu software options to distract the operator
  • ‘Touch2Measure’ provides instant feature determination and measurement with a single click or press

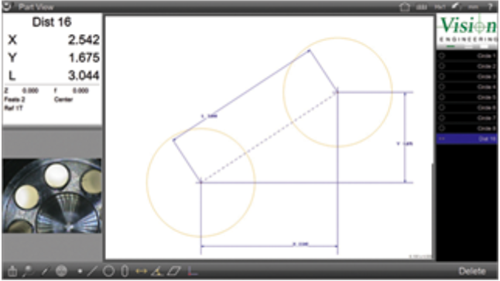

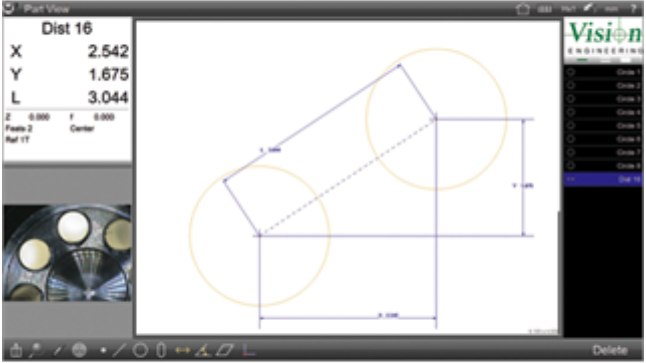

  • CAD-like Part View mark-up for easy inspection and reporting of data
  • Quick annotation and feature mark-up tools
  • Multiple video probe tools to match the job in hand, from Cross Hair to full video edge detection
  • Advanced edge teach for enhanced edge detection performance
  • Flexible reporting and printing
  • Flexible tolerancing
  • Direct compare to allow simple CAD import of DXF overlay drawings to check those complex geometric parts for a simple Go/No Go decision. (optional upgrade)
