Measuring board Wave V6

The measuring board Wave V6 and measuring electronics PTP® make an ideal and versatile instrument for process recording, analysis and optimisation available.

The measuring board Wave V6 and measuring electronics PTP® make an ideal and versatile instrument for process recording, analysis and optimisation available.

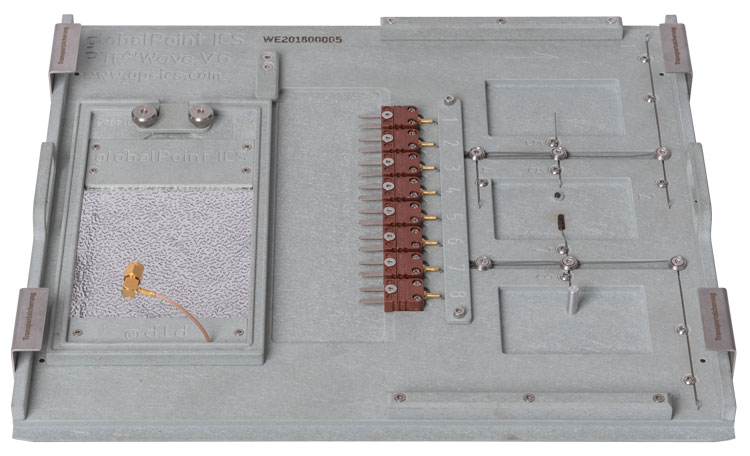

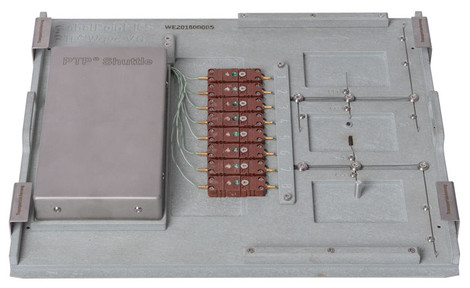

The measuring board Wave V6 has eight thermocouples of the highest accuracy class. These are placed permanently stable on specially designed measuring fields. The measuring board is used to check the system parameters and their optimisation in the soldering system.


  • Measurement of the atmospheric temperature
  • Measurement of dwell times left, centre and right
  • Measurement of the transport speed
  • Recording of the energy input in a measuring dummy as a basis for evaluating the risk to sensitive components (electrolyte condensers)
  • High-temperature antenna onboard
  • For Oven or Process control and Profile Optimization
  • Ref. ISO EN 9001:2008
  • For lead-free processes optimized
  • 8 Inconel® Sheathed TCs for plant control
  • finished as D=0.5 mm K-Type
  • Standard size 300x330mm [WxL]
  • Size customized variabel
  • 3 barriers for thermal protection
  • 8 cables connecting electronics and thermocouples
  • EN ISO 584 miniature connectors
  • 1 thermal masses/measuring dummies
  • Determination of the cross profiles
  • Measuring transportation speed
  • Measuring dwell times
  • Measuring preheating temperature/slope
  • Determination wave planarity
  • Measuring solder bath temperature
  • Comparation of device profiles
  • Determination atmospheric temperatures
  • High temperature antenna onboard
