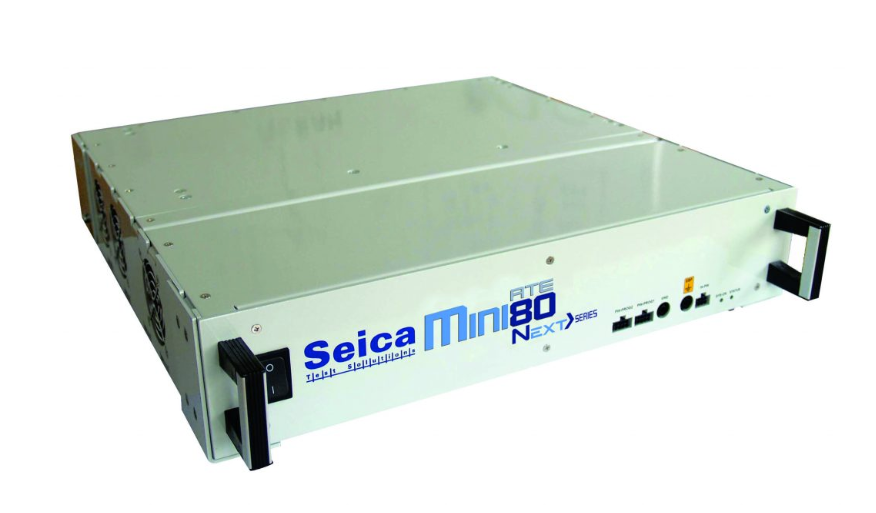

MINI 80

MINI 80 represents the maximum miniaturization available to date with an ATE tester.

All potentials of an automatic test equipment is available within 19″/2U rack as a support for those seeking parametric tests with few test points, or for those requiring a standard test-bench platform.
This is a very interesting solution also for integration of on-board programming and boundary-scan test in a real test platform.
A competitive price/performance ratio.

Mini 80 is suitable for:

  • in-circuit test of small boards
  • on-board programming
  • boundary-scan test integration
  • being the core of the company test platform
  • integration of production equipments for in-line testing
Seica
  • External management unit
  • Manual or customized adapter
  • Up to 192 analog channels
  • Up to 32 hybrid channels (digital channel up to 10 MHz)
  • 1 User power supply (0-30V@1A)
  • Universal on-board programmer (up to 4 available in parallel)
  • Boundary-scan test management
  • Self-test at the module level
  • off-line programming and repair station
  • functional test sequence management via NI (Labview/Teststand) O.S.
  • ict and/or functional test sequence with VIVA operating system by SEICA
  • barcode and 2D code reading and automatic collection of statistical data
  • automatic programming with CAD data import
