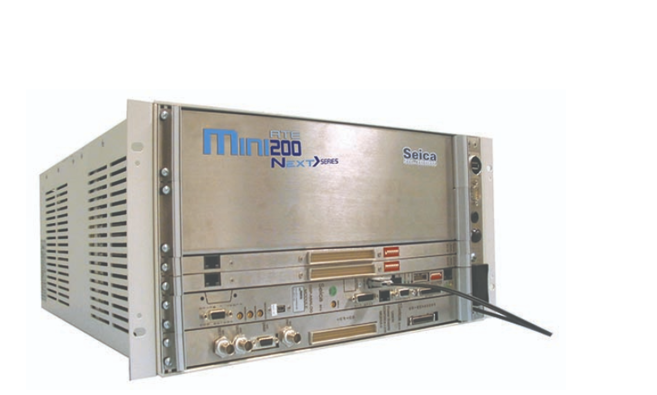

MINI 200

In the ATE world, MINI 200 represents an excellent compromise in terms of integration and scalability.

All the essential resources to create an in-circuit test are available in a 19″/6U rack architecture, including the management unit. This structure, independent, allows to create stand-alone test stations with proprietary interface of which the user has the fixture and the know-how.
This is a very interesting solution also for on-board programming and boundary scan tests integration in a real test platform.

Mini 200 is suitable for:

  • in-circuit test of small boards
  • on-board programming
  • boundary-scan test integration
  • use of proprietary adapters and existing fixtures
  • Legacy replacement
  • Integrated management unit (slim PC)
  • Customized adapter
  • Up to 768 analog channels
  • Up to 64 hybrid channels (digital channel up to 10 MHz)
  • 3 user power supplies
  • Universal on-board programmer (up to 4 in parallel)
  • Boundary-scan test management
  • Self-test at the module level
  • off-line programming and repair station
  • functional test sequence management via NI (Labview/Teststand) O.S.
  • ict and/or functional test sequence with VIVA operating system by SEICA
  • barcode and 2D code reading and automatic collection of statistical data
  • automatic programming with CAD data import
