Compact SL

This configuration offers a completely automated solution via an integrated, SMEMA-compatible conveyor system, allowing completely automatic board handling and easy integration into high volume production lines.

Configurable as ICT, pre-functional, functional and combinational. The compact footprint and the compliance with WCM criteria, enable easy and successful integration both in-line and/or within an automated test island. Cost reduction and high throughput guaranteed.

Compact SL is particularly suitable for:

parametric and in-circuit tests
functional tests
On-board programming
In-line integration
High-volume production
Automated test islands
Operator-free use
Handling costs reduction

Seica

Parameters and specifications

Up to 1536 analog channels
Up to 128 hybrid channels (digital channel up to 10 MHz)
Up to 6 user power supply units
2-JOB paralllel test with standard cabinet
4-JOB parallel test with double cabinet
OPENFIX for open pin identification on digital components and connectors
Universal on-board programmer (up to 8 in parallel)
Boundary-scan test
Self-test at the module level
Receiver with pneumatic press and upper contrasts
Off-line Programming and Repair Stations
barcode and 2D code reading management; automatic statistic data collection
Automated programming via CAD data import

Robert Gajdůšek Sales manager
(AOI,Testing, selective laser soldering)

mobile: +420 724 512 929
email: r.gajdusek%a-t%pbt.cz

Send me your question.

Your email*

Your phone number*

Firma

Your question

Your personal data will be processed according to the privacy policy.

Kontakt

Brochure PDF (9.7 MB)
Spare parts

Seica

Compact SL

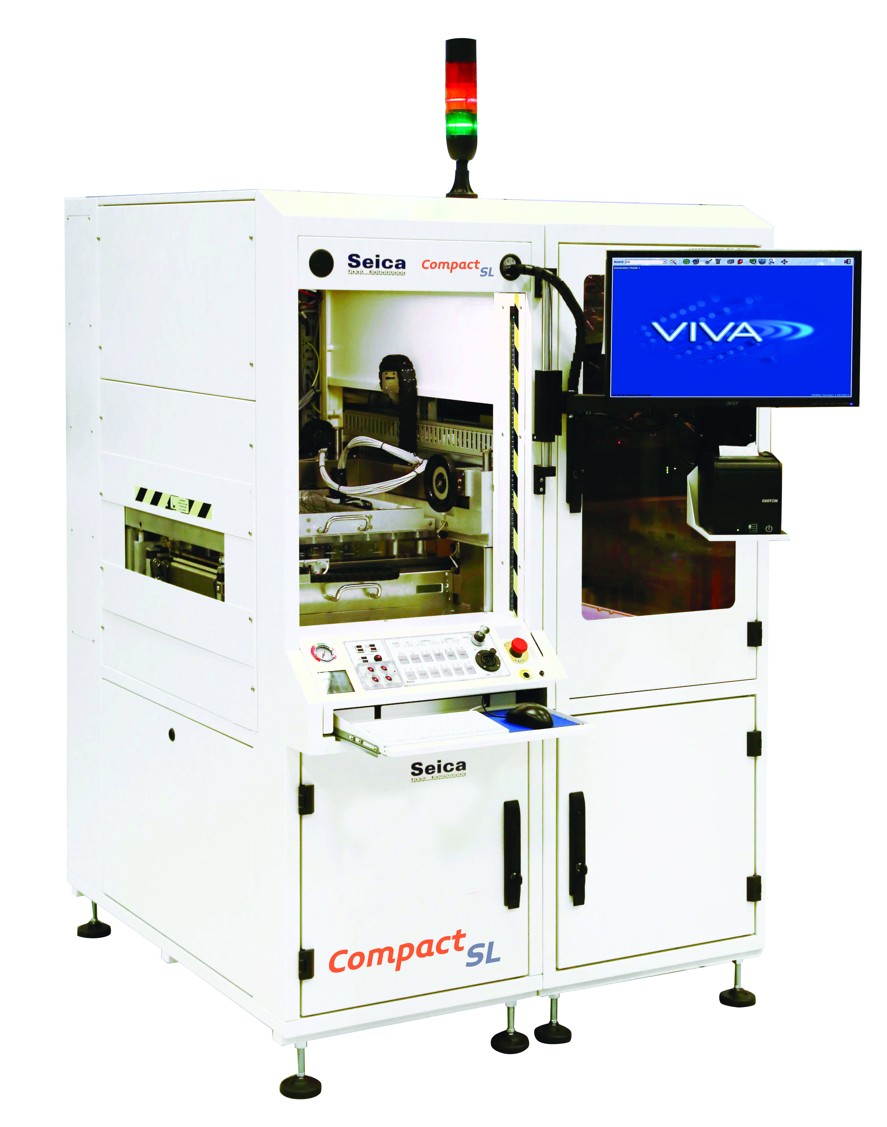

Compact SL - obr. 1
