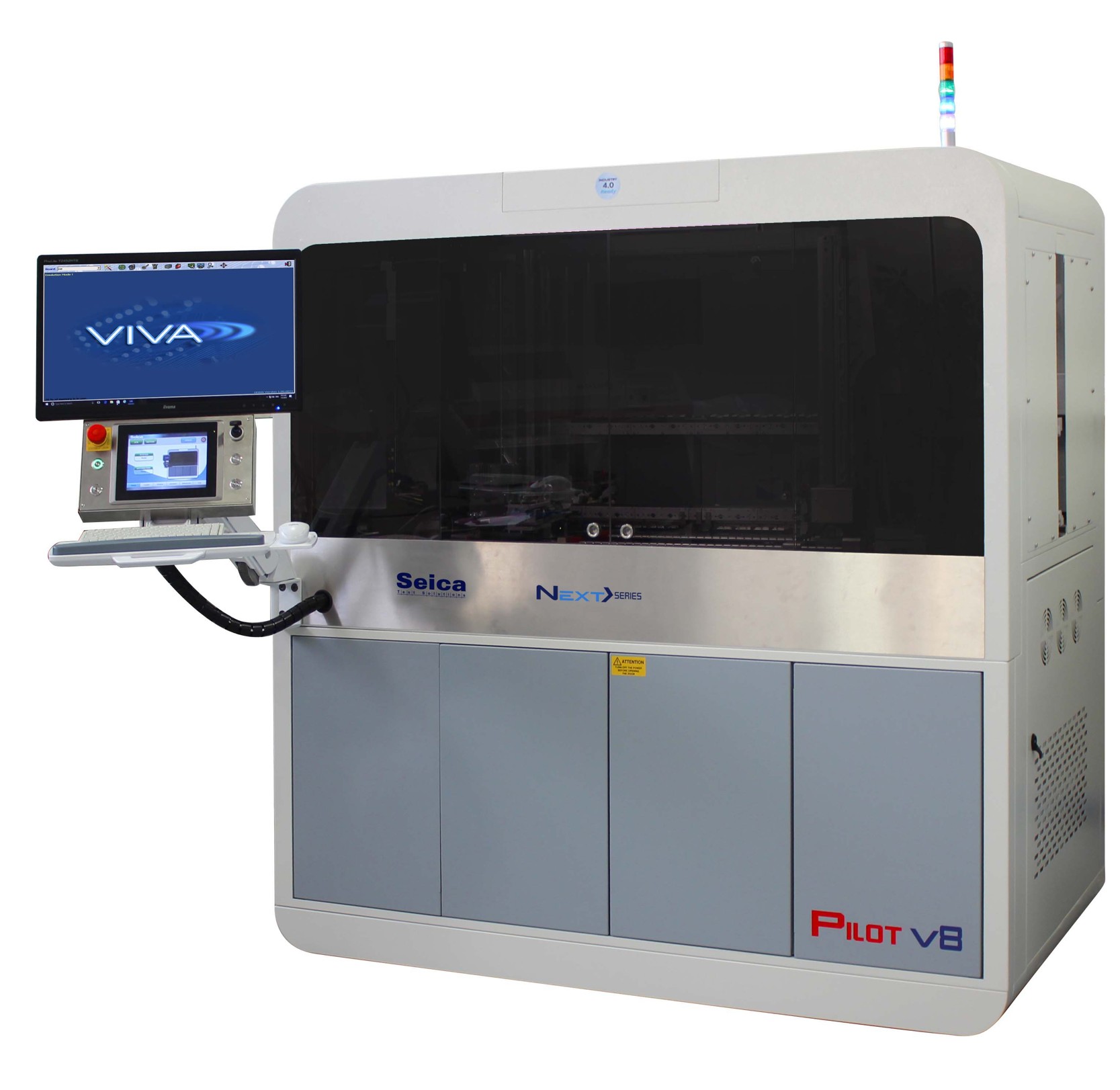

PILOT V8

The Flying Probe Tester Pilot V8 Next> series represents the latest frontier in flying probe test technology; it is the complete solution for those who want maximum performance: the highest test speed, low to medium volume, test coverage and flexibility, for prototyping, manufacturing, or repairing any type of board. Its vertical architecture is the optimum solution for probing both sides of the UUT simultaneously.

Flying Probe Tester Pilot V8 Next> series is suitable for:

Vectorless and in-circuit tests
Programming and functional tests
Boundary Scan test
Medium/high volumes with automatic loader
Highly-integrated prototypes
High-mixed products
Boards not designed for testing
Reverse Engineering and Repair

Parameters and specifications

8-flying probe tester unit (4 on each side)
Vertical architecture to reduce d.u.t. warpage and vibrations.
Both top and bottom sides are equipped with power probe, capacitive probe and camera
Manual or automatic d.u.t. loading (optional loader/unloader)
In-circuit tests, on-board programming, boundary-scan
Quick-test test for functional test sequence implementation
Fixed channels available (connected manually or via connector)
Off-line programming and repair stations
Barcode reading capability and 2D; automated collection of statisctical data
Automated programming with CAD data import
Repair tool: PWMON (net analysis of powered board), thermal scan (temperature monitoring), DES (software to assess the error probability
