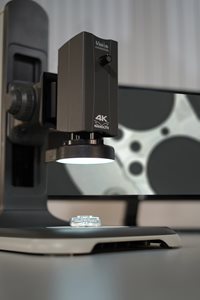

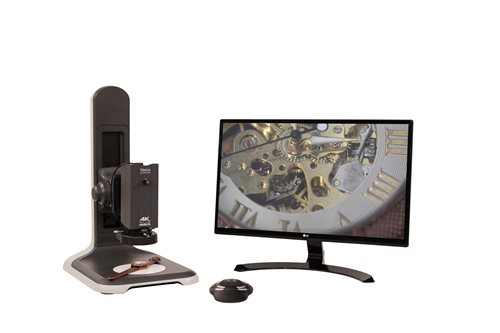

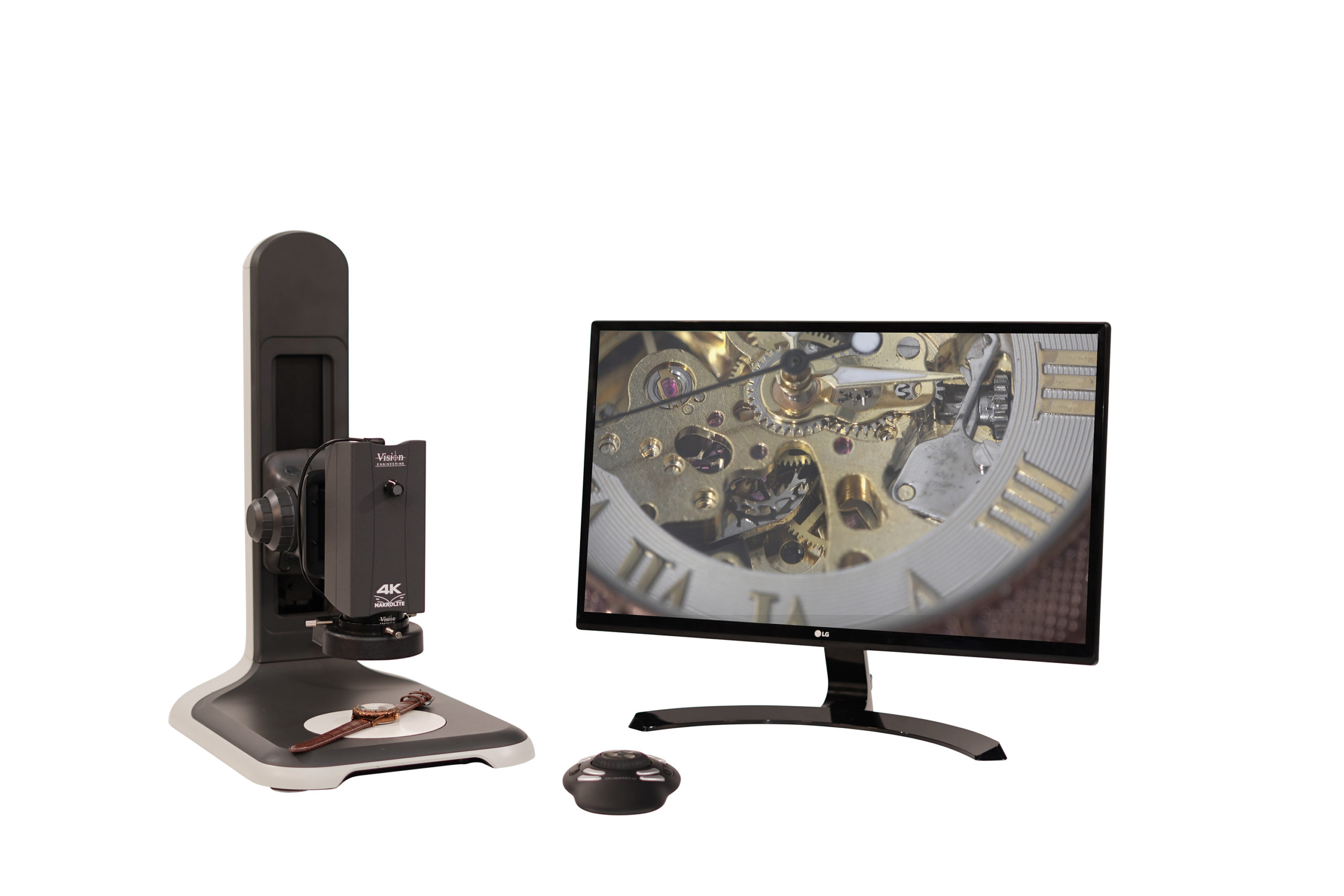

Makrolite 4K

The Makrolite 4K digital microscope simplifies your optical inspection, image capture and measurement tasks with the exceptional quality of Ultra High Definition image resolution.

Outstanding image detail
Makrolite 4K offers inspection, magnification, measurement and capture with 4K resolution (4x greater than Full HD) and a 20:1 optical zoom. The result is exceptional image quality, showing finer details of the subject and improving productivity.

Sharp real-time 4K video
Makrolite 4K provides live, sharp, high-definition video images in Ultra HD and up to 330x magnification for, real-time viewing or data sharing. Stream or record live 4K video via your computer to share information or as a teaching/training tool.

Quick and easy to use
Rapidly interchangeable objectives and ergonomic console control help to increase productivity.

Ultimate control and simplicity
Manual or autofocus and four user programmable pre-sets allow quick and efficient operation and ensure consistency between operators and across multiple systems.

Stand alone or PC based systems
Choose Makrolite 4K as either a stand-alone system operated using a console, or as a PC system with software camera control and annotation/measurement capability.

Ideal for challenging subjects
Makrolite 4K’s wide dynamic range is ideally suited for inspection of subjects that are highly reflective such as electro-polished finishes and solder joints, and subjects where details are often lost in areas of shadow, highlights or poor contrast such as black plastics and ceramics.

Fast defect detection
Live image overlay comparison provides a reliable and efficient way to save time in carrying out routine or recurring inspection tasks to defined standards. CAD file import acts as a simple image comparator making it easy to spot faults and pass/fail inspection.

Stand options for all applications
Achieve the best workstation or in-line inspection set-up for your application with our wide range of microscope stands for industrial and life science applications . Our stands provide exceptional stability with options of extended reach, floating stage, sub-stage illumination and more.

Camera data
Sensor typeCMOS 1/2,5″ 8.51 mega pixels
ImageUltra HD 2160p (3840 x 2160)
FocusAutofocus or manual focus
Camera output4K 2160p/30 fps
Camera output on computer4K 2160p/30 fps on the PCI Express card
  • 4K image and video recorder (for console configuration).
  • Floating Stage: for smooth and precise control. For use with Ergo stand and Bench stand only.
  • Tilting stage: for manipulation and angled orientation of subjects.
