AOI for THT Assembly Automatic. Optical Inspection System. Directly At The Assembly Station.

Mek VeriSpector is an assembly station AOI for use on manual and semi-automated SMD and THT assembly stations. With extremely short inspection times ( < 5 sec ) the VeriSpector AOI system allows manufacturers to perform real time assembly and placement inspection, carry out repairs on the fly and prevent defects before they move into the next process.  In manual assembly there is a much increased risk of faults. The instant feedback provided to operators by VeriSpector helps eliminate the risk of failures and increase the quality and effectiveness of manual and semi-automatic manufacturing processes, delivering significant yield improvements. Although optimized for PCB Assembly tasks, the assembly station AOI module is also ideal for use in other disciplines.

Versatile Inspection System
Mek VeriSpector is an inspection system using the renowned 22X Software. It is easy to program while maintaining the power and speed of the inspection algorithms used for many years within the PCB (Printed Circuit Board) assembly industry.

Flexible Inspection Possibilities
The VeriSpector is designed for a wide verity of inspection needs including presence/absence, orientation, shape, offset, polarity, text verification, fiducial reading, colour check, 1D and 2D barcode reading, assembly materials fittings, damaged objects, and many more. The maximum size of PCB or object to be inspected  is 750mm x 500mm (29.5″x19.7″) whilst the minimum is 460x300mm (18×12”″) while using the maximum zoom setting on the zoom lens

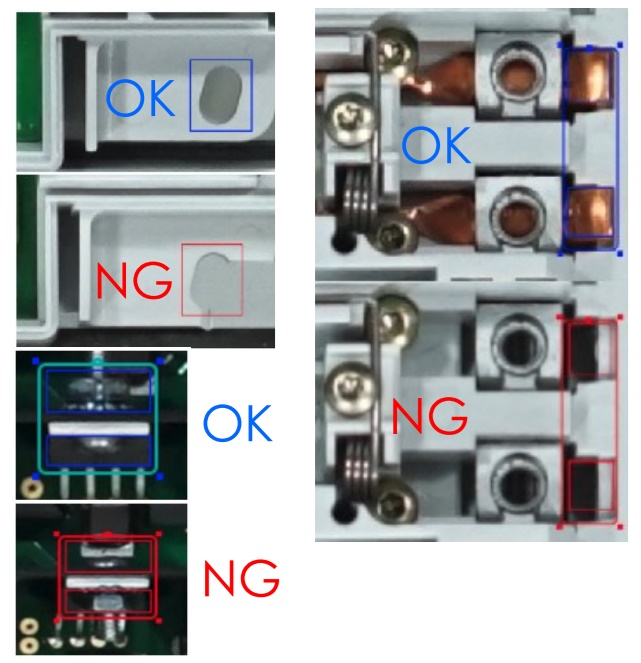

A 24MP camera for crisp, clear resolution comes as standard, with a high definition lens to capture fine details. Options are available to upgrade to 42Mp or 60Mp cameras depending on the application requirements.  The resolution can be increased if a PCB size less than the maximum of 750×500 is required. Detected defects can be displayed via red circles on a PCB Map or by NG images.

The overhead orthogonal camera and LED lighting system are optimised for colour and glare, allowing operators to continue performing assembly tasks under normal lighting conditions.

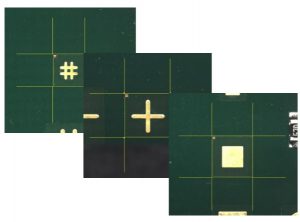

Fiducial Recognition
Amongst the many capabilities of the VeriSpector assembly station AOI, the recognition of fiducials is an important feature, ensuring high
repeatability of inspection programs. The VeriSpector uses the fiducial recognition algorithm provided by the 22x Software. VeriSpector can recognize a wide variety of fiducials, and when there is no fiducial available, it can use a photo as fiducial reference.

Connectivity and Traceabilty
VeriSpector is powered by Mek 22X AOI Software on Apple Mac ™ and is fully compatibility with Mek’s 22X AOI products such as SpectorBOX including Library, Fiducialling, Search, Text, Polarity, Bar Coding etc. BarCode reading is carried out by the 22X BarCode decoding engine. Base formats including Datamatrix, QRcode, Code 128 and Code 39 are supported and the system can handle multiple barcodes per fixture or panel. For total flexibility, an external BarCode reader can also be used.

As an option VeriSpector can also feature Mek Catch Software for MES gateways, repair & SPC on Windows 10 ™, integrating the storage of inspection data, including images.

Easy Integration

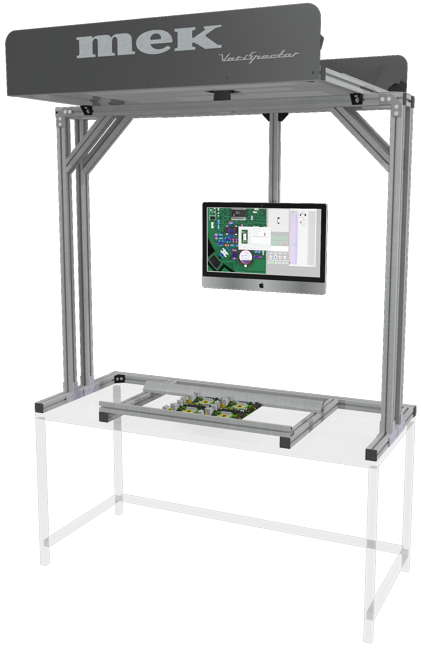

The VeriSpector Assembly Station AOI comes complete as an easy to assemble package to install the optical head with frame on the assembly station of the users’ choice.  This frame holds all the system components; camera, lighting system, Apple Mac & monitor.

The VeriSpector is available in three different models, so you can choose the perfect camera for your inspection requirements.
Product type1-Shot Stationary AOI
Camera movementStationary
PCB movementStationary
Parts inspectionPresence, Orientation (polarity), Shape, Offset, Text, Color
Image ProcessingSynthetic Imaging, Spectral Histogram Analysis, Custom algorithms
Camera/lens typeDigital Singe Lens CMOS camera with high resolution optical zoom lens
Sensor/Lens Resolution24Mp / 2100LP; 42Mp / 3600LP; 60Mp / 3600LP
Lighting systemQuad Low Reflection LED system
