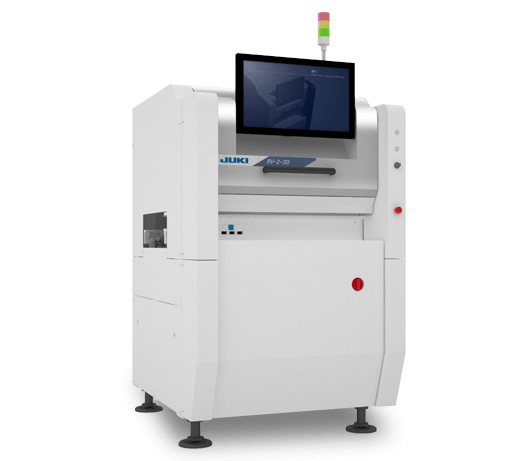

RV-2/RV-2 3D

PWB Visual Inspection Machine (AOI/SPI)

Inline type high-speed and high-precision board inspection machine that can be used in a wide variety of inspection processes.

Space saving and compact single-lane inspection machine.

  • High Accuracy
  • High Speed
  • RV-2 3D AOI High Speed Image Processing
BOARD SIZE - SINGLE LANE
  • 50mmx50mm-410mmx360mm
  • 630mmx360mm (Long Board Option)
INSPECTION RESOLUTION
  • 15µm (standard) / 10µm (high resolution)
INSPECTION SPEED
  • 0.41 sec/FOV
CAMERA SPEED
  • 160FPS 160images/sec
