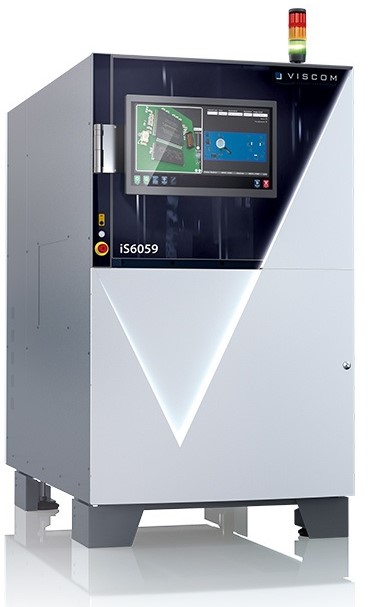

iS6059 PCB Inspection

first-class inspection results for efficient SMT manufacturing

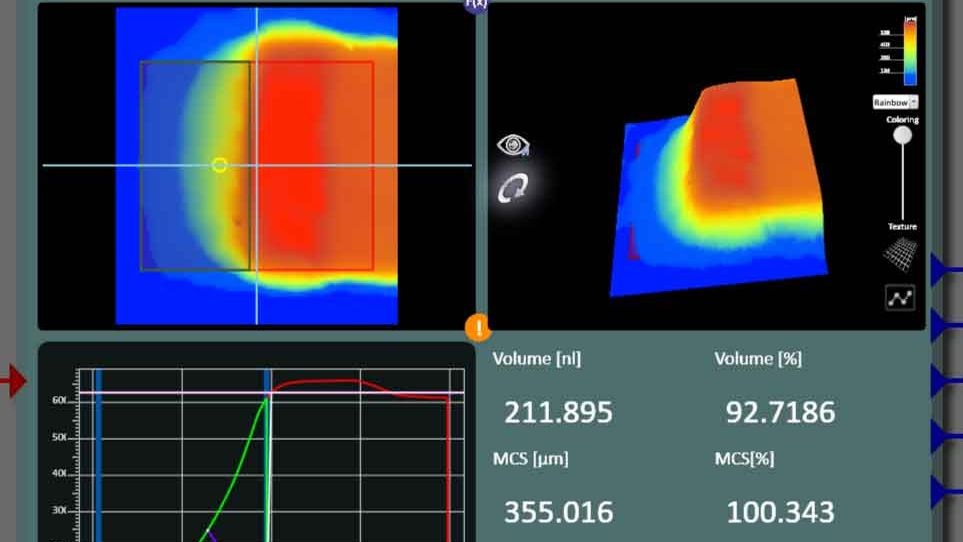

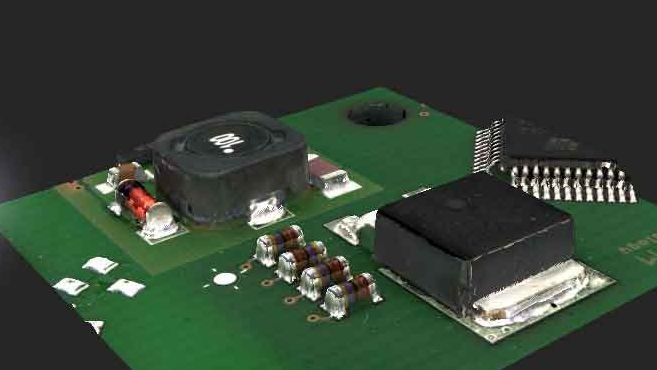

The iS6059 PCB Inspection combines the advantages of special high-speed 3D camera technology with excellent inspection quality and extremely fast inspection speed. The 3D AOI system, which was developed for the economical large-scale production of assemblies, reliably inspects both components and solder joints. Within the manufacturing process, it can be intelligently networked for Industry 4.0 applications.

Parameters and specifications

Robust system design
Ideal system configuration with respect to costs/benefits
High inspection speed
One orthogonal camera and eight angled-view cameras provide virtually shadow-free 3D inspections
Verified zero defect slippage thanks to integrated verification
Flexible integration into existing productions
Improved ergonomic design
