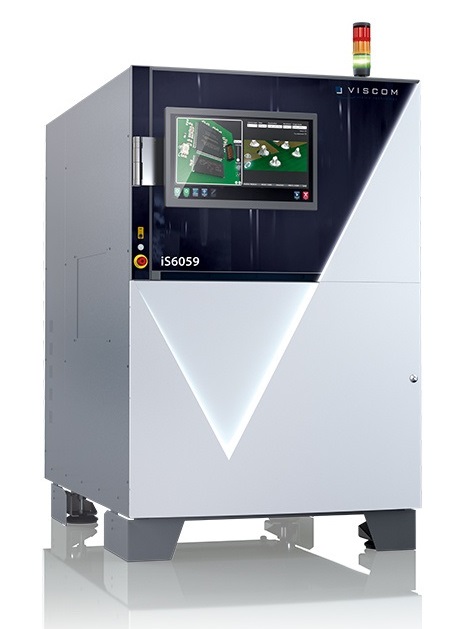

iS6059 Double-Sided Inspection

Redefining PCB Inspection with Viscom’s iS6059 Double-Sided Inspection

In industries such as automotive, aerospace, medical and telecommunications, ensuring the reliability of technical end products is paramount. Following soldering, circuit boards require protective coatings to safeguard electrical contacts against moisture, corrosion and environmental contaminants, thereby guaranteeing long-term functionality. Viscom's automatic conformal coating inspection system addresses this critical need by meticulously examining circuit boards for the presence of coating, surface defects and coating thickness.

The iS6052 CCI system stands out with its integrated UV LEDs, which effectively enhance the contrast between coated and uncoated areas. Featuring a camera resolution of up to 12 μm/pixel, this system offers unparalleled clarity, making it easy to identify cracks, blisters, smears and coating splatter, even on surfaces with thin or silicone-containing coatings that may have weaker reflective properties.

Moreover, with an upper transport height of 115 mm, the iS6052 CCI system ensures flexibility during final inspections of fully assembled PCBs. This versatility allows for comprehensive quality assessments, further enhancing the reliability and performance of end products across diverse industries.
