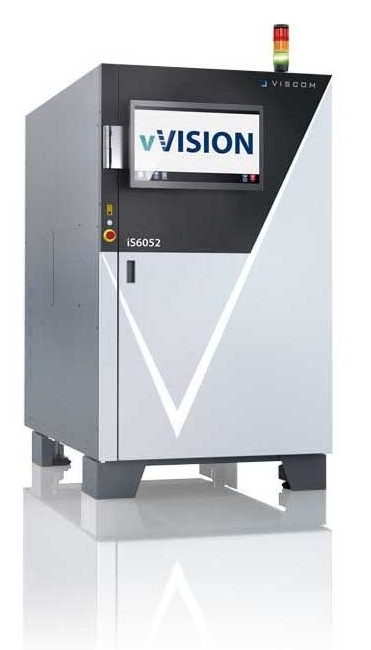

iS6052 THT

iS6052 THT Inspection – unmatched THT quality control from above

Introducing the iS6052 THT inspection system, specifically designed to ensure accurate component placement on THT (Through-Hole Technology) boards. Utilizing advanced AOI (Automated Optical Inspection) technology, the iS6052 THT system conducts inspections from above the printed circuit board. This unique approach distinguishes it from conventional THT inspection systems, which typically inspect boards from below. With its focus on accuracy and efficiency, the iS6052 THT system provides manufacturers with a reliable solution for quality assurance in THT assembly processes.
Viscom
Camera resolution 12 µm
Dimensions 997 × 1756 × 1753 mm (W × D × H)
Field of view (FOV) 50 × 50 mm
Inspection speed up to 60 cm²/s
Maximum PCB size up to 600 × 508 mm (optional), standard 440 × 508 mm
Clearance up to 115 mm (top), up to 50 mm (bottom)
