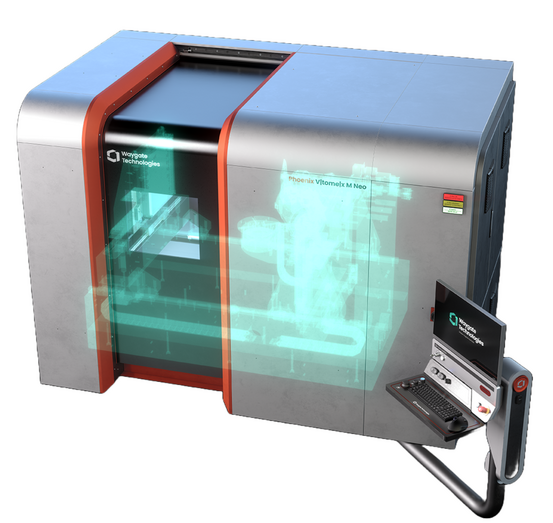

Phoenix V|tome|x M Neo

Phoenix V|tome|x M Neo is a highly versatile industrial CT system for high-resolution 3D inspection, dimensional metrology and non-destructive testing.

Phoenix V|tome|x M Neo is a high-performance industrial computed tomography system designed for advanced 3D inspection, failure analysis and dimensional metrology.

The system combines high penetration power with outstanding detail detectability, making it suitable for a wide range of applications in research, quality assurance and industrial production. Components with complex geometries or internal structures can be inspected non-destructively and evaluated in full 3D.

The standard configuration features a 300 kV / 500 W high-power microfocus X-ray tube, providing the penetration performance required for large and highly absorbing parts. An alternative 240 kV / 320 W microfocus tube is also available.

For applications requiring highest resolution, the system can be equipped with an optional 180 kV / 20 W nanofocus X-ray tube with Diamond|window technology. In the Dual|tube configuration, microfocus and nanofocus technologies are combined within one system, providing maximum flexibility for different inspection tasks.

With nanofocus technology, the system achieves detail detectability down to 0.2 µm and a voxel size below 0.5 µm, enabling high-resolution inspection of very small structures and features.

Scatter|correct technology reduces artifacts caused by scattered radiation and improves image quality, especially when inspecting large, dense or highly absorbing components.

The system supports Dynamic 41 detector technology for high image quality, high dynamic range and efficient CT acquisition. In combination with High-flux|target, increased X-ray flux can be achieved while maintaining a small focal spot, allowing faster scans or higher resolution.

A high-precision 6-axis manipulator on a granite base ensures stable and accurate sample positioning. The variable focus-detector distance provides flexible geometric magnification, while Offset|CT allows inspection of components up to 500 mm in diameter.

CT acquisition, reconstruction and system control are performed with Phoenix Datos|x, supporting automated and repeatable CT workflows.
