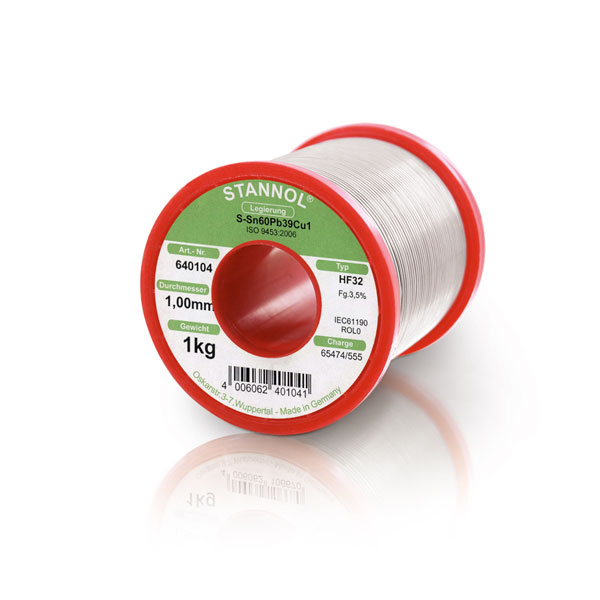

HF32

The HF32 electronics soldering wire is based on a "No-Clean" flux and is available with lead-free and alloys containing lead.

It has been developed for high requirements for conventional soldering and for soldering SMDs in industrial production and for repair and resoldering.

The wire flux HF32 is a halogen-free activated flux based on natural and modified resins. it combines high activity and good flow characteristics in an outstanding way with minimal, light, usually hardly visible, solid and electrically safe residues.

application:
HF32 can be used for manual and machine soldering in the area of electrical engineering and electronics.

  • Halogen-free activation
  • Reduced resin amount
  • High proportion of organic acids
  • Less fumes
Flux typeROL0 (IEC 61190-1-3) / 1.1.3.B (DIN EN 29454-1) / F-SW32
Flux contentstandard 3,5 weight % ± 0,3 %
Halide contentnone, according to DIN EN ISO 9455-6
Standard alloysLead-containing
 Lead-free (Ecoloy Serie)
