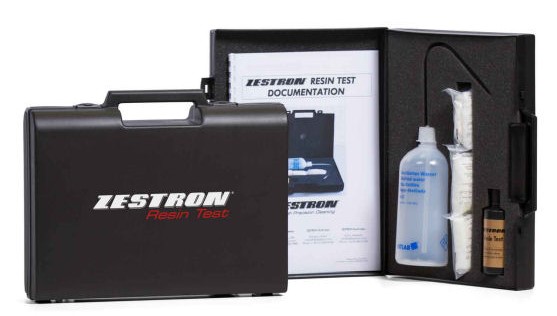

ZESTRON Resin Test

Indication of resin based residues on pcb assemblies.

The ZESTRON® Resin Test visually and temporarily identifies the local distribution of resin based residues on electronic assemblies via a color reaction. Critical resin residues, which cause poor adhesion of conformal coatings and delamination effects can be localized during the production and removed by a cleaning step. Thus the critical resin amount of <40 μg/cm² (258.06 μg/sq in) according to J-STD 001 can be met.

This test complements analytical methods such as Ionic Contamination Measurement and the ZESTRON® Flux Test (detection of activators/acids).
  • Localized detection of resin based residues on electronic assemblies
  • Quick and easy test method. No extensive training required
  • No specific test equipment needed
  • No additional floor space requirements
  • No investment costs
  • Can be used throughout the facility
  • On-site sampling inspection during production
  • Low cost per tested part
