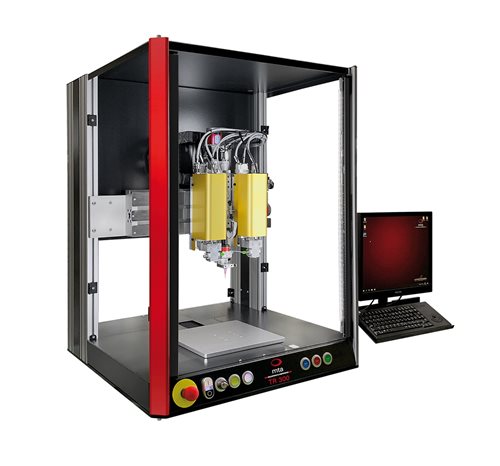

TR 300

Automated table-top robot

The TR300 standard table-top robot is PC controlled and allows semi automatic operations of volumetric dispensing.

The increasing demands from customers in terms of quality, precision and repeatibility lead to increasing levels of automation. However, when production batches are small or products widely dissimilar, the cost of sophisticated equipment can place automation beyond the reach of many would-be users. Therefore, the TR300 combines flexibility with the required high levels of process quality and repeatability, all at reasonable cost.

The TR300 can be equipped with all the established mta® dispensing techniques.

The 3 or 4 axes of the TR300 are fully programmable through the mta® MotionEditor software including dispensing parameters such as: Volume to be dispensed, dispensing speed, mixing ratio as well as other related dispensing parameters e.g. unlimited quantity of points, linear or circular beads.

Working area300 × 300 × 100 mm
Cartesian robot3 or 4 axes (option: T axis)
Shift of axespoint by point or linear interpolation
Positioning repeatability±20 μm
SpeedX and Y: <200mm/s, Z <100mm/s, T <=3.14 rad/s
Electronic controlindustrial PC
Operating systemWINDOWS
ProgrammingHMI Windows oriented
InterfacesEthernet / USB port / Serial port
Execution modestandalone or slave with PLC via I/O interface
Axes actuationstep by step motor
Power supply230/115V – 50/60Hz
Power consumption1 kVA
Air pressuremax. 6 bar
Dimensions804 x 732 x 995 mm
Weight~125 kg
