OEM

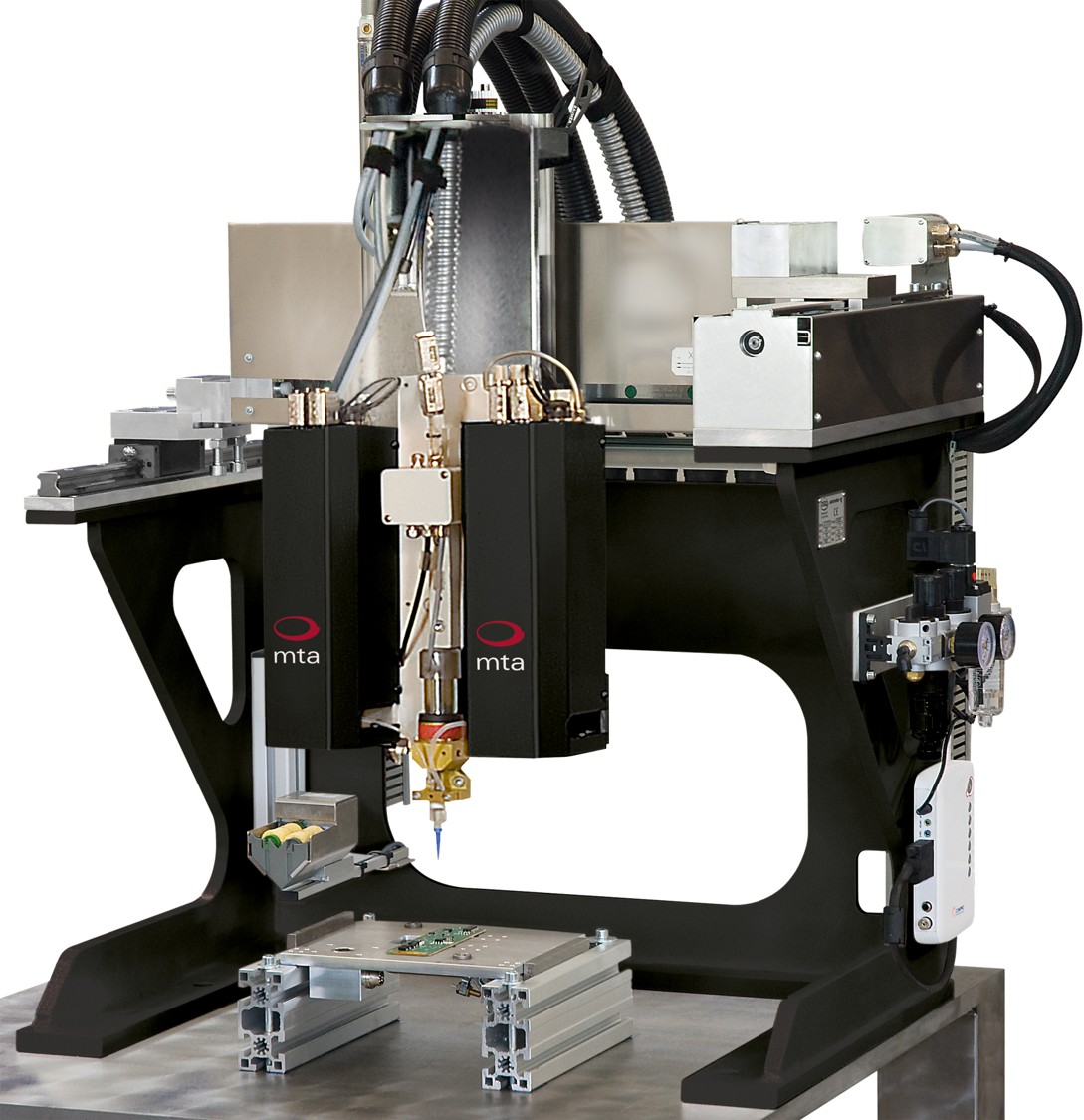

Cartesian robot for inline integration

The OEM standard robot is PC controlled and allows semi or fully automatic operations of volumetric dispensing.

Thanks to its unique concept, the OEM robot is delivered to the system manufacturer with a process guarantee.

The OEM robot can be equipped with all the established mta® dispensing techniques.

The 3 or 4 axes of the OEM robot are fully programmable through the mta® MotionEditor software including dispensing parameters such as: Volume to be dispensed, dispensing speed, mixing ratio as well as other related dispensing parameters e.g. unlimited quantity of points, linear or circular beads.

With its flexible and modular concept, the OEM robot can be fully and easily integrated into a production line (no safety guarding included).

Working area300 × 300 × 200 mm
 500 × 500 × 200 mm
Cartesian robot3 or 4 axes (option: T axis)
Shift of axespoint by point or linear interpolation
Positioning repeatability±20 μm
SpeedX and Y<250mm/s, Z <150mm/s, T <=3.14 rad/s
Electronic controlindustrial PC
Operating systemWINDOWS
Programming  HMI Windows oriented
InterfacesEthernet / USB port / Serial port
Execution modestandalone or slave with PLC via I/O interface
X, Y and Z axes actuationDC Brushless motors; T Axis: step by step motor
Power supply230/115V – 50/60Hz
Power consumption1.1 kVA
Air pressuremax. 6 bar
Dimensions756 × 585 × 933 mm
Weight~150 kg
