MRC500

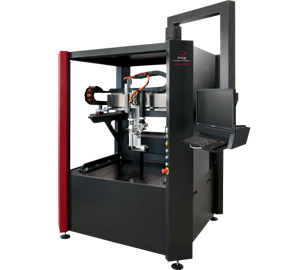

The PC controlled MRC500 “mta® robotic cell” is a standard automatic dispensing machin ewith a working area is of 500x500mm. It can be used for semi or fully automated dispensing operations.

The MRC500 can be equipped with all the established mta® dispensing techniques.

The 3 axes of the MRC500 are fully programmable through the mta® MotionEditor software including dispensing parameters such as volume to be dispensed, dispensing speed, mixing ratio as well as other related dispensing parameters e.g. unlimited quantity of points, linear or circular beads.

Thanks to its flexible and modular concept, the MRC500 has an open architecture. It can therefore easily be integrated into existing production lines with pallet conveyors or a rotary table.

The MRC500 robotic cell provides standardized automation solutions with the highest quality and repeatability for all customer specific applications.

Working area500 × 500 × 200 mm or 300 × 300 × 200 mm (MRC300)
Cartesian robot3 axes
Shift of axespoint by point or linear interpolation
Positioning repeatability±20 μm
SpeedX and Y: <300mm/s, Z <150mm/s
Dimensions1425 × 1420 × 2250 mm
Weight~650 kg
