MD70vs

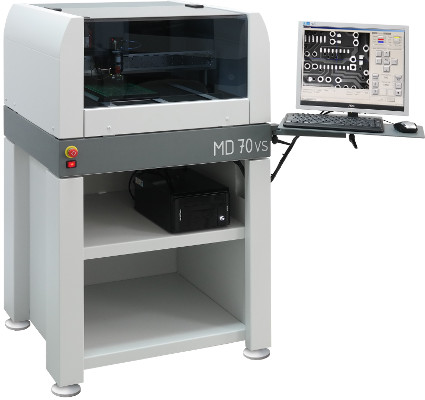

Mechatronika's MD70vs Liquid Dispensing System is a versatile automatic machine for dispensing solder paste, glue or virtually any viscous substances.

Matured, high quality rigid construction, ease of programming and excellent price to performance ratio make MD70vs perfectly suited for small and middle scale production lines.

MD70vs combines mechanical accuracy with high quality pattern recognition system built into easy to use and powerful programming software. MD70vs productivity and flexibility, quick change-over and low maintenance requirements drive down total cost of ownership (TCO) to the level demanded by today's cost-sensitive production environments.

  • Fully automated dispensing
  • Integrated vision system for Teach-in mode programming, automatic fiducial correction and bad mark recognition
  • Precise needle height adjustment
  • Built-in needle thermostat for reliable paste and liquids dispensing
  • Linear encoders for high accuracy and repeatability
  • Easy to use Microsoft Windows based control system with third party CAD text files import capability for increased productivity
  • Excellent price to performance ratio and low TCO

Working area380 × 540 mm
Dimensions750 × 670 × 520 mm
Weight70 kg (140 kg including stand)
