RELENTLESS STRONG PICK-AND-PLACE. Strong, Flexible, Adaptive & Modular

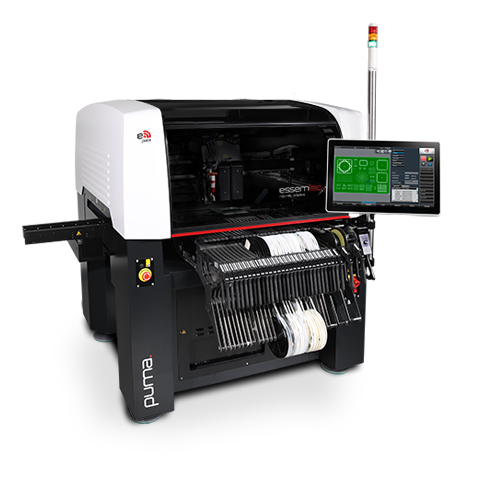

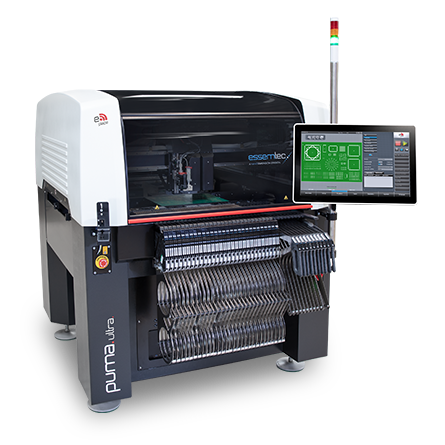

Introducing - The Puma - State of the art technology. Expandable in any direction. Same as in nature our Puma is common modular and adaptive in all kinds of environment . With different modules the systems grow synchronously with the customer’s requirements for performance and processes. Puma is world`s best highspeed Pick-and-Place solution which can also be used in ultraflexible, rapid prototyping development.

Naturally adaptive
Configurable heads with 1, 2 or 4 placement-axes. 2,5D and 3D dispensing and jetting, High resolution digital vision system with auto component teach-in and irregular ball recognition. Full operator support - Automated error analysis & KPI. Training, support and troubleshooting via advanced remote access. Investment protection; all options and heads retrofittable. Multi flexible feeder, multi lane cassette or highly accurate single lane feeder. Tape, Stick, Strip, Tray slider. Largest component spectrum; 01005 up to 80 x 80 mm, height up to 25 mm.

combined process
  • Highspeed placement and dispensing in single pass-through
  • 1, 2 or 4 placement-axes and 1-2 dispense processes
productivity
  • Optimum 18’100 cph, up to 54’300 cph inline
  • Optimum 145’000 dots/h (with Piezo Jet Valve)
small footprint
  • Up to 280 Feeder on 2 m2 (up to 420 inline)
  • PCB size 560 x 610 mm, optional 1’800 x 610 mm
mineral cast
  • No vibration, symmetrical mineral casting
  • No warpage, no thermal drift
quick changeover
  • Nonstop production, intelligent smart feeder
  • Nonstop feeder and production changeover
linear motors
  • Fast, reliable double drive linear motors
  • No maintenance, longest lifetime

    Puma Puma2 Puma4
Productivity Optimum placement speed 6'700 cph (1-axis) 11'200 cph (2-axes) 18'100 cph (4-axes)
  Optimum jetting speed   145'000 Dots/h
Feeder Feeder capacity 8 mm Tape 260 (140 inline) 260 (140 inline) 280 (160 inline)
Components Component size range   01005 - 33 × 80 mm (80 × 80 mm optional)
Accuracy Placement accuracy (x, y)   50 μm @ 3σ
PCB Ma×. PCB dimensions 560 × 610 mm (22 × 24") optional 1'800 × 610 mm (71 × 24")
Dimensions Machine footprint   1'557 × 1'357 mm (61 × 53")
